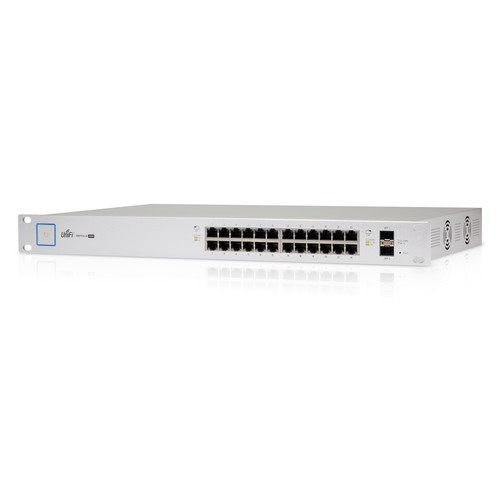

US-24-250W Ubiquiti UniFi Switch 24 Gigabit

Product Feature:

  • Rack mountable
  • Max Deliverable PoE: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • (24) Gigabit RJ45 ports
  • (2) 1 Gbps SFP ports
  • Total, non-blocking throughput: 26 Gbps
  • Maximum power consumption: 250W



Product Specifications

  • Weight: 4.7kg (10.4lbs)
  • Power Supply: AC/DC, Internal, 250W DC
  • Dimensions: 485 x 43.7 x 285.4mm (19.09 x 1.72 x 11.24″)
  • Total Non-Blocking Throughput: 26 Gbps
  • Power Method: 100-240VAC/50-60 Hz, Universal Input
  • LEDs per Port: RJ45 Data Ports: PoE, Speed/Link/Activity / SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces: (24) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mbps
  • Rack Mount: Yes, 1U High
  • ESD/EMP Protection:
  • -Air: ±24 kV
  • -Contact: ±24 kV
  • Management Interface: (1) RJ45 Serial Port Out-of-Band (Reserved for Future Use), Ethernet In-Band
  • Operating Temperature: -5 to 40°C (23 to 104°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Certifications: CE, FCC, IC



PoE Specifications

  • Passive PoE Wattage per Port: 17W
  • 24V Passive PoE Voltage Range: 20-27V
  • PoE+ Wattage per Port by PSE: 34.2W
  • PoE Interfaces: PoE+ IEEE 802.3af/at (Pins 1,2+;3,6-), 24VDC Passive PoE (Pins 4,5+;7,8-)
  • Voltage Range 802.3at Mode: 50-57V
Compare

Description

Ubiquiti UniFi Switch 24 Gigabit US-24-250W

Shop for Ubiquiti UniFi Switch 24 Gigabit US-24-250W in Nairobi, Kenya from Routine ubiquiti dealers

Overview

With 24 auto-sensing Gigabit Ethernet ports, the UniFi Managed PoE+ Gigabit 24 Port Switch with SFPfrom Ubiquiti Networks is capable of providing a stable, reliable network connection to a large number of Ethernet enabled devices. Add in 802.3af/at PoE compatibility and 250W of available power, and this managed PoE+ switch is capable of powering a variety of PoE compatible network components such as access points, VoIP phones, and much more. Along with Gigabit Ethernet connectivity users can connect high speed storage devices to either of the two SFP ports. Once configured, Ubiquiti’s own UniFi controller software makes network configuration and management simple as you can mange PoE settings, operation modes, VLAN configuration, storm control settings per port, and much more.

Product Feature:

  • Rack mountable
  • Max Deliverable PoE: 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
  • (24) Gigabit RJ45 ports
  • (2) 1 Gbps SFP ports
  • Total, non-blocking throughput: 26 Gbps
  • Maximum power consumption: 250W
