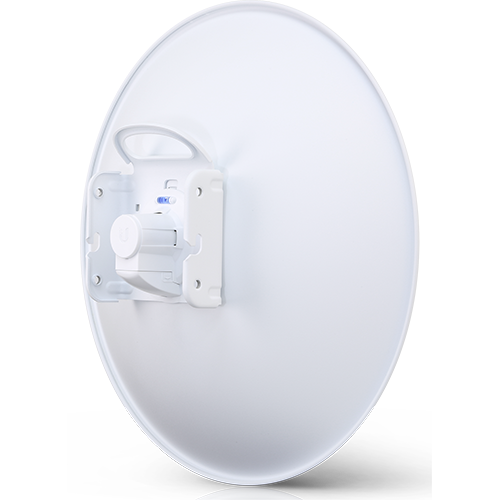

Ubiquiti Powerbeam AC Gen2 PBE-5AC-Gen2

Product Specifications:

  • Dimensions: 420 x 420 x 230mm (16.54 x 16.54 x 9.06″)
  • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
  • Supported Voltage Range: 20 to 26VDC
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
  • Certifications: CE, FCC, IC
  • Weight: 2.22kg (4.89lbs)
  • Power Consumption: 8.5W
  • Memory: 64MB
  • LEDs: Power, Ethernet, (4) Signal Strength
  • Mounting: Pole-Mounting Kit (included)
  • Processor Specs: MIPS 74Kc
  • Operating Frequency: 2412 – 2472MHz / 5150 – 5875MHz
  • Wind Loading: 380N @ 200km/h (85.4lbf @ 125mph)
  • Wind Survivability: 200km/h (125mph)
  • ESD/EMP Protection: Air: ±24kV / Contact: ±24kV
  • Operating Temperature: -40 to 70°C (-40 to 158°F)
  • Operating Humidity: 5 to 95% non-condensing
  • Enclosure Characteristics:
  • Antenna Feed: Outdoor UV Stabilized Plastic
  • Dish Reflector: Powder-Coated SPCC
  • RoHS Compliance: Yes
  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • UV Test: IEC 68-2-5 at 40°C (104°F), Equivalent: ETS 300 019-1-4
  • Vibration Test: IEC 68-2-6
  • Temperature Shock Test: IEC 68-2-14
  • Power Supply: 24V, 0.5A Gigabit PoE Adapter (included)
  • Gain: 25dBi
  • Networking Interface: (1) 10/100/1000 Ethernet Port



Product Includes:

  • 1 Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • 1 Power Cord
  • 1 Quick Start Guide
  • 1 Rear Housing
  • 1 Adjustment Bracket
  • 1 Mounting Bracket
  • 4 Hex Bolts with Washers
  • 1 Dish Reflector
  • 1 Antenna Feed
  • 1 Pole Clamp
  • 2 Long Carriage Bolts
  • 2 Flange Nuts
Compare

Description

Ubiquiti Powerbeam AC Gen2 PBE-5AC-Gen2

Shop for Ubiquiti Powerbeam AC Gen2 PBE-5AC-Gen2 in Nairobi, Kenya from Routine ubiquiti dealers.

High-Performance airMAX ac Bridge

Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam AC Gen2 is ideal for CPE deployments requiring maximum performance.
